rincian produk

Rumah Produk

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

Nama Merek:	BABOS
Nomor Model:	SD-9
Jumlah Pesanan Minimum:	20 pcs
harga:	dapat dinegosiasikan
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union
Kemampuan Penyediaan:	10.0000 pcs per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Bahan:

Tungsten Carbide

Membentuk:

Bentuk bola

Diameter Potong:

24mm

Potong panjang:

21mm

Diameter betis:

1/4 "

Panjang keseluruhan:

124nn

Jenis seruling:

Potongan Ganda Standar

Cocok untuk:

Profil Permukaan Pemesinan Benda Kerja

Aplikasi:

Deburring, pembentukan, dan finishing

Kuantitas paket:

1 pcs

Max Rpm:

50.000

Kemasan rincian:

Kotak plastik

Deskripsi Produk

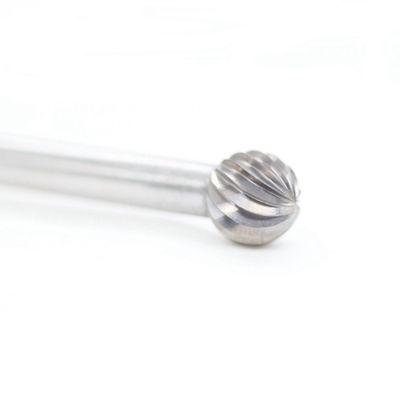

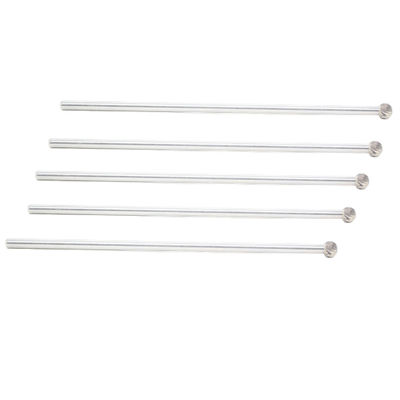

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut

BABOS 10mm dia ball carbide burr with customized 200mm long shank on 1/4'' shank dia, single cut design for efficient metal grinding, deburring, and shaping.

10mm Dia Ball Carbide Burrs With Customized 200mm Shank Length On 1/4" Shank Dia Single Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 9mm

Shank Diameter: 6mm

OAL: 209mm

Cut Type: Single Cut

Other Available Standard Sizes Related to Type D Ball Shape Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	3/8"	5/16"	2-1/16"	SD-3	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
