D-Ball Shape 25mm Cut Dia Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr

Gambar besar : D-Ball Shape 25mm Cut Dia Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr

Detail produk:

Place of Origin:	China
Nama merek:	BABOS
Model Number:	SD-Ball Shape

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	20pcs
Harga:	dapat dinegosiasikan

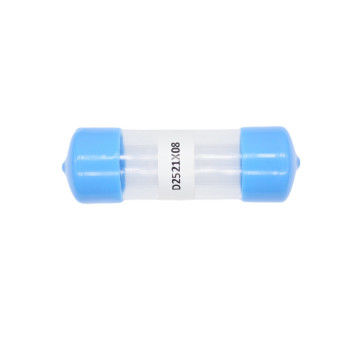

Packaging Details:	Plastic Box
Delivery Time:	3 days for standard products, 1-2weeks for custom products.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10,0000pcs per month

Kontak

Detil Deskripsi produk

Material:	Tungsten Carbide	Shape:	Ball Shape
Cut Diameter:	25mm	Cut Length:	20mm
Shank Diameter:	8mm	Overall Length:	66mm
Flute Type:	Standard Double Cut	Suitable For:	Machining Surface Profile of Workpiece
Application:	Deburring, Shaping, and Finishing	Package Quantity:	1 pcs
Max Rpm:	50,000

8mm Shank D-Ball Shape 25mm Cut Dia Carbide Burrs Double Cut Carbide Rotary Burr

Engineered for precision and durability, this D-Ball shape carbide burr features a 25mm cutting diameter and an 8mm shank, making it ideal for heavy-duty metalworking applications. Crafted from premium tungsten carbide, this burr delivers exceptional hardness and wear resistance, ensuring long service life even under high-speed grinding.

The double cut tooth pattern provides smoother operation, reduces loading, and enhances control during cutting, shaping, deburring, and surface cleaning tasks. Perfectly suited for use on steel, stainless steel, cast iron, non-ferrous metals, and hard plastics.

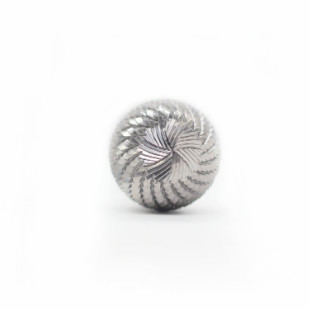

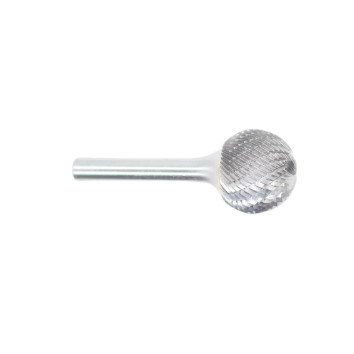

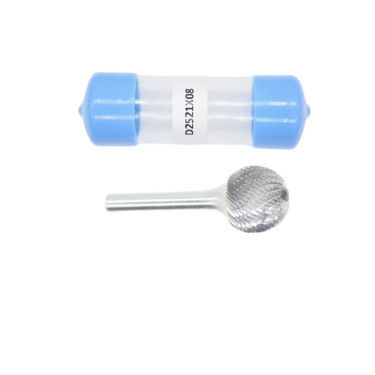

Ball Shape Carbide Burr On 8mm Shank

D-Ball Shape 25mm Cut Dia Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:25mm

Length of Flute: 21mm

Shank Diameter: 8mm

OAL: 66mm

Cut Type: Standard Double Cut

Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Length of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	2	1.8	38	D0202	Solid
	2.5	2.3	38	D2525	Solid
	3	2.5	38	D0325	Solid
	4	3	41	D0403	Brazed
	5	4	42	D0504	Brazed
	6	5	43	D0605	Brazed
6	6	5	50	D0605	Brazed
	8	7	52	D0807	Brazed
	10	9	54	D1009	Brazed
	12	10	55	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2521	Brazed
8	12	10	56	D1210	Brazed
	16	14	59	D1614	Brazed
	19	18	63	D1918	Brazed
	25	21	66	D2520	Brazed
Inch Standard
1/8''	1/8"	1/8"	1-1/2"	SD-42	Solid
	3/16"	5/32"	1-1/2"	SD-53	Brazed
	1/4"	7/32"	1-3/4"	SD-51	Brazed
1/4''	3/16"	1/8"	2''	SD-14	Solid
	1/4"	7/32"	2''	SD-1	Solid
	5/16"	1/4"	2"	SD-2	Brazed
	7/16"	3/8"	2-1/7"	SD-4	Brazed
	1/2"	7/16"	2-1/5"	SD-5	Brazed
	5/8"	9/16"	2-1/3"	SD-6	Brazed
	3/4"	11/16"	2-4/9"	SD-7	Brazed
	1"	15/16"	2-7/8"	SD-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type D burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

D-Ball Shape 25mm Cut Dia Carbide Burrs With 8mm Shank Dia Double Cut Carbide Rotary Burr 1
